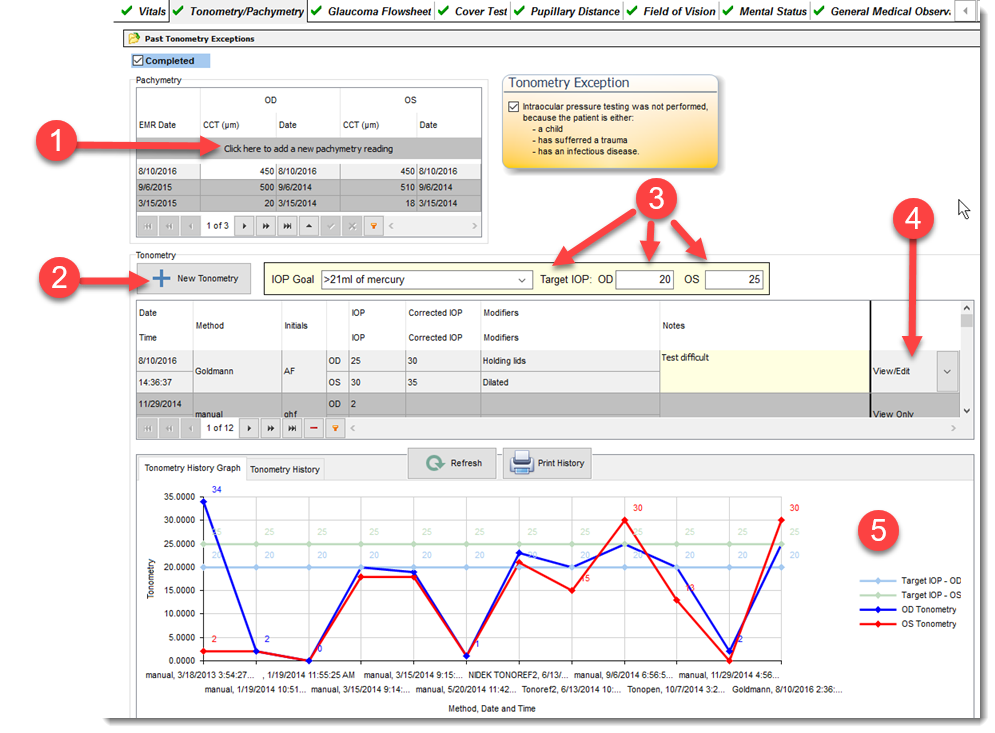

The Tonometry / Pachymetry screen allows users to enter and graph the values recorded.
1) The grid displays all records associated the current and past Pachymetry records. To record a New Pachymetry record click on the first row of the grid.
2) To enter a Tonometry reading select the New Tonometry button. When using the E&M coding standard you can record that a Tonometry reading was not recorded for this exam. The Past Tonometry Exception drop down shows all of the other Patient exams for which no Tonometry reading was recorded.
3) Allows the user to record the IOP goal.

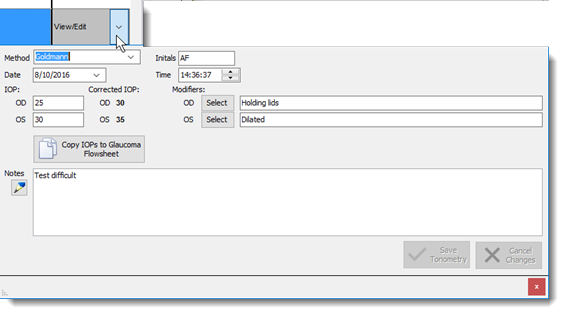

4) when the Tonometry record in the grid (4) is selected (View/Edit button located at the end of the record row) the details of the record are displayed in this pop up of the screen. Only current exam values can be modified. The pop up allows the user to copy the IOP value to the Glaucoma Flow Sheet.
5) the system will graph the data recorded (historic and today's exam results).

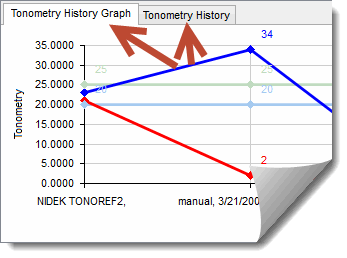

IOP History
You can also review the IOP history by selecting the Tonometry History tab located at the top left of the graph.
